3 Dimensional Roof Shingles

The unique advantage of Seeton

l Unique product line

Seeton has a state-of-art machine designed to improve the efficiency of sticking two layers. And we have the technology of double strips and cutting-edge technology of environment isolation.

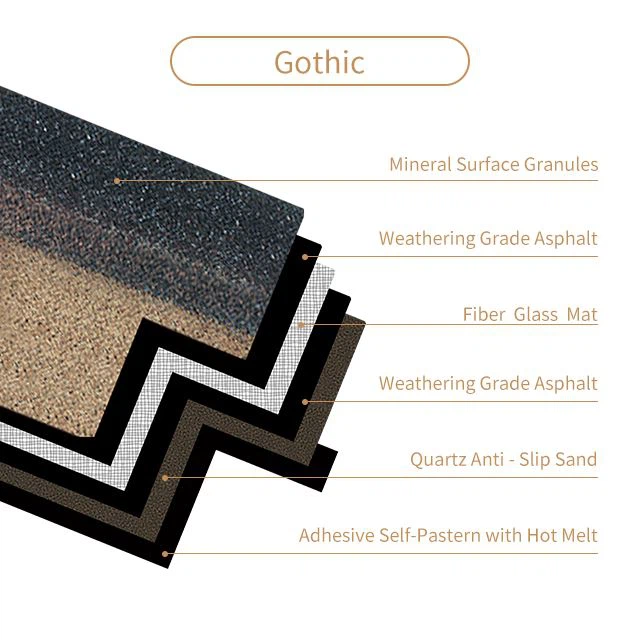

l Unique granules

Between two types of granule (dyeing granule and sintered granule), Seeton takes sintered granule as its raw material, which lays a foundation for better quality asphalt shingle.

l Unique sanding system

We choose Triangular coarse sand which achieves a better roof effect than normal sand.

l Unique asphalt

The raw material of high-quality modified asphalt makes Seeton asphalts shingle more stable and solve the problems like flowing at high temperature and cracking at low temperature.

l Unique felt

The fiberglass melt we use, which is the same as Owens Corning, can prolong the life span of asphalt shingle and make it more stable.

l Unique strip

Seeton adopts a segmented rubber strip instead of a connected one, which not only lowers the cost of an asphalt shingle but also reduces the damage of intruding water.

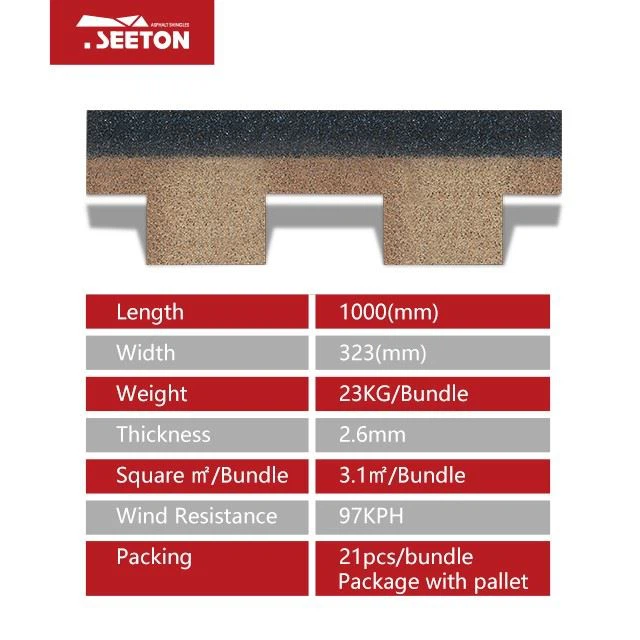

Product specifications

1) Recommended length: 1000mm;

2) Recommended width: 333mm.

Scope of application

1) Suitable for reinforced concrete roof and wood (or steel frame) roof system. The surface of the sloping roof concrete lookout board should be smooth, and the wooden lookout board should be treated with anti-corrosion and mothproofing.

2) Mainly used for slope roofs of low-rise or multi-story residential buildings and commercial buildings.

3) It is suitable for roofs with a slope of 18°~60°. When it is greater than 60°, the fixing measures should be strengthened.

4) When the asphalt shingle is used alone, it can be used for waterproof grade Ⅲ (one waterproof fortification, and waterproof cushion), Ⅳ (one waterproof fortification, no waterproof cushion); when used in combination, it can be used for waterproof grade Ⅰ (Two waterproof fortifications, with waterproof cushion), Class II (one to two waterproof fortifications, with waterproof cushion).
